1-1/4 in. CPVC Slip x Grooved Adapter is a corrosion and heat-resistant CPVC fitting designed to connect CPVC pipe to grooved pipe ends. This CPVC adapter features a 1-1/4 in. (31.75 mm) female socket connections and a 1-1/4 in. (31.75 mm) grooved pipe end.
Each 1-1/4 in. CPVC Slip x Grooved Adapter is made in the USA by Thermafit Industries, Inc., a California-based manufacturer of plumbing and fire sprinkler pipe fittings. This adapter has a working pressure rating of 175 PSI at 150F (65C) and is suitable for installation in NFPA 13, NFPA 13D, and NFPA 13R systems where allowed by state and local law.
1-1/4 in. CPVC Slip x Grooved Adapter is intended for use in light hazard NFPA 13 occupancies, residential NFPA 13R occupancies, and home fire sprinkler systems in accordance with NFPA 13D. This FM-approved product is UL-listed for use in wet-pipe automatic fire sprinkler systems in combination with UL-listed CPVC products.
1-1/4 in. CPVC Slip x Grooved Adapter is backed by Thermafit's ten-year warranty from the date of shipment. t

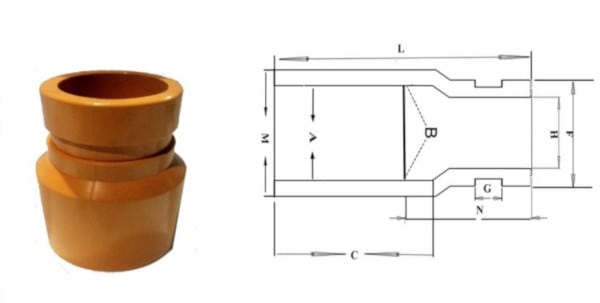

Dimensions
- A: 1.670 in.
- B: 1.655 in.
- C: 0.938 in. (Schedule 40) or 1.250 in. (Schedule 80)
- F: 1.6600 in.
- G: 0.3070 in.
- H: 1.2460 in.
- L: 3.000 in.
- M: 2.0880 in.
- N: 1.4655 in.
Material: |
CPVC |
Pipe Fitting Type: |
Coupling |
UL Listed/FM Approved: |
No |
