1-1/2 in. CPVC Slip x Slip Coupling is a corrosion and heat-resistant CPVC fitting designed for use with fire sprinkler piping. This CPVC coupling features two 1-1/2 in. (38.1 mm) female socket connections used to join two pipe ends.
Each 1-1/2 in. CPVC Slip x Slip Coupling is made in the USA by Thermafit Industries, Inc., a California-based manufacturer of plumbing and fire sprinkler pipe fittings. This coupling has a working pressure rating of 175 PSI at 150F (65C) and is suitable for installation in NFPA 13, NFPA 13D, and NFPA 13R systems where allowed by state and local law.
1-1/2 in. CPVC Slip x Slip Coupling is intended for use in light hazard NFPA 13 occupancies, residential NFPA 13R occupancies, and home fire sprinkler systems in accordance with NFPA 13D. This FM-approved product is UL-listed for use in wet-pipe automatic fire sprinkler systems in combination with UL-listed CPVC products.
1-1/2 in. CPVC Slip x Slip Coupling is backed by Thermafit's ten-year warranty from the date of shipment.

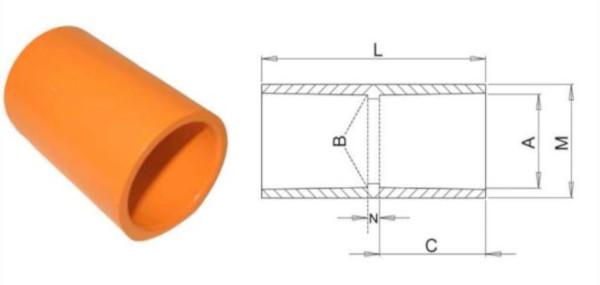

Dimensions
- A: 1.912 in.
- B: 1.894 in.
- C: 1.094 in. (Schedule 40) or 1.375 in. (Schedule 80)
- L: 2.938 in.
- M: 2-1/2 in.
- N: 0.157 in.
Material: |
CPVC |
Pipe Fitting Type: |
Coupling |
UL Listed/FM Approved: |
No |
