2 in. CPVC 45-Degree Slip x Slip Elbow is a corrosion-resistant CPVC thermoplastic fitting for use with fire sprinkler pipe. This 45-degree CPVC elbow features two 2 in. (50.8 mm) female socket connections used to redirect flow.
Each 2 in. CPVC 45-Degree Slip x Slip Elbow is made in the USA by Thermafit Industries, Inc., a California-based manufacturer of plumbing and fire sprinkler pipe fittings. This elbow has a working pressure rating of 175 PSI at 150F (65C) and is suitable for installation in NFPA 13, NFPA 13D, and NFPA 13R systems where allowed by state and local law.
2 in. CPVC 45-Degree Slip x Slip Elbow is intended for use in light hazard NFPA 13 occupancies, residential NFPA 13R occupancies, and home fire sprinkler systems in accordance with NFPA 13D. This product is UL-listed for use in wet-pipe automatic fire sprinkler systems in combination with UL-listed CPVC products.
2 in. CPVC 45-Degree Slip x Slip Elbow is backed by Thermafit's ten-year warranty from the date of shipment.

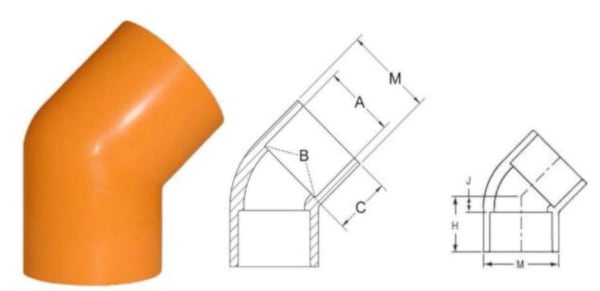

Dimensions
- A: 2.387 in.
- B: 2.369 in.
- C: 1.156 in. (Schedule 40) or 1.500 in. (Schedule 80)
- H: 2.1250 in.
- J: 0.6563 in.
- M: 2.8750 in.
Material: |
CPVC |
Pipe Fitting Type: |
Elbow, 45 Degree |
UL Listed/FM Approved: |
No |
