1 in. Slip x 1/2 in. FNPT CPVC 90-Degree Elbow Adapter joins corrosion-resistant CPVC thermoplastic pipe to metallic pipe with National Pipe Thread (NPT). This 90-degree CPVC adapter features a 1 in. (25.4 mm) slip end and a threaded brass 1/2 in. (12.7 mm) FNPT end designed for connection to fire sprinkler heads.
Each 1 in. Slip x 1/2 in. FNPT CPVC 90-Degree Elbow Adapter is made in the USA by Thermafit Industries, Inc., a California-based manufacturer of plumbing and fire sprinkler pipe fittings. This adapter has a working pressure rating of 175 PSI at 150F (65C) and is suitable for installation in NFPA 13, NFPA 13D, and NFPA 13R systems where allowed by state and local law.
1 in. Slip x 1/2 in. FNPT CPVC 90-Degree Elbow Adapter is intended for use in light hazard NFPA 13 occupancies, residential NFPA 13R occupancies, and home fire sprinkler systems in accordance with NFPA 13D. This product is UL-listed for use in wet-pipe automatic fire sprinkler systems in combination with UL-listed CPVC products.
1 in. Slip x 1/2 in. FNPT CPVC 90-Degree Elbow Adapter is backed by Thermafit's ten-year warranty from the date of shipment.

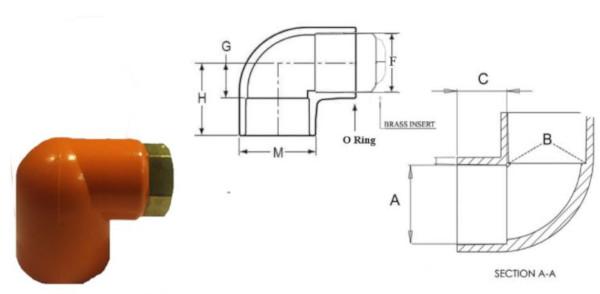

Dimensions
- A: 1.325 in.
- B: 1.310 in.
- C: 0.875 in. (Schedule 40) or 1.125 in. (Schedule 80)
- F: 1.337 in.
- G: 0.730 in.
- H: 1.460 in.
- M: 1.700 in.
Material: |
CPVC |
Pipe Fitting Type: |
Elbow, 90 Degree |
UL Listed/FM Approved: |
No |
