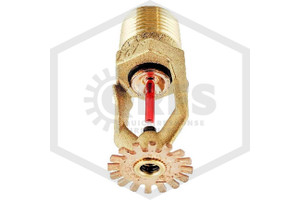

Victaulic V27 Pendent Fire Sprinkler | V2708 | Quick Response | 5.6K | Brass | 155F

SKU:
V2708BR155

No reviews yet Write a Review
$10.25
Victaulic Fire Sprinkler 5.6K Brass Pendent QR 155F | V2708
Victaulic Fire Sprinkler 5.6K Brass Pendent QR 155F | V2708
Victaulic Fire Sprinkler 5.6K Brass Pendent QR 155F | V2708 - Deflector
Victaulic Fire Sprinkler 5.6K Brass Pendent QR 155F | V2708 - Side
Victaulic Fire Sprinkler 5.6K Brass Pendent QR 155F | V2708 - Other Side
Victaulic Fire Sprinkler 5.6K Brass Pendent QR 155F | V2708 - Threads

  • Buy 100 - 399 and get 5% off
  • Buy 400 or above and get 8% off

Frequently Bought Together:

Victaulic Fire Sprinkler 5.6K Brass Pendent QR 155F | V2708
Inc. Tax
Ex. Tax

Overview

Victaulic Firelock V2708 Quick Response Brass Pendent Fire Sprinkler delivers reliable and easily installed protection against fire in ordinary-temperature applications. Using a heat-activated 3mm glass bulb, this automatic fire sprinkler activates when the surrounding air reaches 155F (68C), lowering ambient temperatures to reduce flashover and facilitating safe escape or rescue.

The Victaulic Model V2708 has a 5.6 K-Factor and installs with 1/2 in. (15 mm) National Pipe Thread (NPT), used in fire sprinkler systems throughout the United States. This Quick Response Fire Sprinkler features a brass finish, die-cast brass frame, bronze load screw, bronze deflector, and a beryllium nickel spring with PTFE-taped seal. The frame is cast with a hex-shaped wrench boss to make installation and tightening from many angles easy.

With a maximum working pressure of 175 PSI (12.1 BAR), this pendent sprinkler mounts to ceiling pipes and may be installed and used in accordance with NFPA 13 and local fire code. Each Model V2708 sprinkler is made by Victaulic, a piping-industry manufacturer and trusted producer of fire protection products since 1919.

This product is UL listed & FM approved for use in fire protection systems when accepted by the authority having jurisdiction. In accordance with NFPA 13, a higher temperature rating may be required when installing a quick response fire sprinkler in or near heat sources, unventilated spaces, uncovered steam mains, or uninsulated rooftops.

Specifications

Finish:
Brass
Response Type:
Quick Response
Temperature:
155F
Corrosion Resistance:
No
May Contain Lead:
No
Nominal K-Factor:
5.6K
Fire Sprinkler Heat Element:
Glass Bulb
Fire Sprinkler Use Type:
Commercial
Fire Sprinkler Head Type:
Pendent
SIN Number:
V2708
Thread Type:
NPT
Model:
V27
UL Listed/FM Approved:
No
