Victaulic V34 Upright Fire Sprinkler | V3402 | Quick Response | 8.0K | Brass | 155F

SKU:
V3402BR155

No reviews yet Write a Review
$15.75

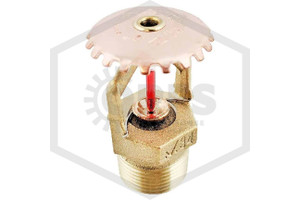

Victaulic Fire Sprinkler 8.0K Brass Upright QR 155F | V3402
Victaulic Fire Sprinkler 8.0K Brass Upright QR 155F | V3402
Victaulic Fire Sprinkler 8.0K Brass Upright QR 155F | V3402 - Deflector
Victaulic Fire Sprinkler 8.0K Brass Upright QR 155F | V3402 - Side
Victaulic Fire Sprinkler 8.0K Brass Upright QR 155F | V3402 - Other Side
Victaulic Fire Sprinkler 8.0K Brass Upright QR 155F | V3402 - Threads

  • Buy 100 - 399 and get 5% off
  • Buy 400 or above and get 8% off

Frequently Bought Together:

Victaulic Fire Sprinkler 8.0K Brass Upright QR 155F | V3402
Inc. Tax
Ex. Tax

Overview

Victaulic V3402 Quick Response Brass Upright Fire Sprinkler delivers reliable and easily installed protection against fire in ordinary-temperature applications. Using a heat-activated 3mm glass bulb, this automatic fire sprinkler activates when the surrounding air reaches 155F (68C), lowering ambient temperatures to reduce flashover and facilitating safe escape or rescue.

The Victaulic Model V3402 has an 8.0 K-Factor and installs with 3/4 in. (20 mm) National Pipe Thread (NPT), used in fire sprinkler systems throughout the United States. This Quick Response Fire Sprinkler features a brass finish, die-cast brass frame, bronze load screw, bronze deflector, and a beryllium nickel spring with PTFE-taped seal. The frame is cast with a hex-shaped wrench boss to make installation and tightening from many angles easy.

With a maximum working pressure of 175 PSI (12.1 BAR), this upright sprinkler limits debris and ice buildup by installing vertically and may be installed and used in accordance with NFPA 13 and local fire code. Each Model V3402 sprinkler is made by Victaulic, a piping-industry manufacturer and trusted producer of fire protection products since 1919.

This product is UL listed & FM approved for use in fire protection systems when accepted by the authority having jurisdiction. In accordance with NFPA 13, a higher temperature rating may be required when installing a quick response fire sprinkler in or near heat sources, unventilated spaces, uncovered steam mains, or uninsulated rooftops.

Specifications

Finish:
Brass
Response Type:
Quick Response
Temperature:
155F
Corrosion Resistance:
No
May Contain Lead:
No
Nominal K-Factor:
8.0K
Fire Sprinkler Heat Element:
Glass Bulb
Fire Sprinkler Use Type:
Commercial
Fire Sprinkler Head Type:
Upright
SIN Number:
V3402
Thread Type:
NPT
Model:
V34
UL Listed/FM Approved:
No
