Victaulic V38 Concealed Pendent Fire Sprinkler | V3801 | Standard Response | 5.6K | 155F

SKU:
V3801CP155

No reviews yet Write a Review
$14.99

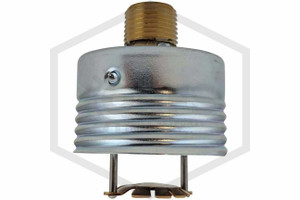

Victaulic Fire Sprinkler 5.6K Concealed Pendent SR 155F | V3801
Victaulic Fire Sprinkler 5.6K Concealed Pendent SR 155F | V3801
Side of Victaulic Fire Sprinkler 5.6K Concealed Pendent SR 155F | V3801
Deflector of Victaulic Fire Sprinkler 5.6K Concealed Pendent SR 155F | V3801
Threads of Victaulic Fire Sprinkler 5.6K Concealed Pendent SR 155F | V3801
  • Victaulic 135F (57C) White Cover Plate for Model V38 Fire Sprinklers
  • Victaulic 135F (57C) Polished Chrome Cover Plate for Model V38 Fire Sprinklers
  • Victaulic Flat Sprinkler Cover Plate for V38 Fire Sprinklers with Black Finish
  • Victaulic V38 Off-White Cover Plate
  • Victaulic V38 Off-White Cover Plate

  • Buy 100 - 399 and get 5% off
  • Buy 400 or above and get 8% off

Frequently Bought Together:

Victaulic Fire Sprinkler 5.6K Concealed Pendent SR 155F | V3801
Inc. Tax
Ex. Tax

Overview

Victaulic V38 Standard Response Concealed Pendent Fire Sprinkler delivers decorative, competitively priced defense against fire in ordinary-temperature applications. Using a heat-activated 5mm glass bulb, this automatic fire sprinkler opens when ambient temperatures reach 155F (68C), drenching the area surrounding a fire to keep it in its place of origin.

Low-profile cover plates mount flush to the ceiling and are available with a white or chrome-plated finish, as well as a flat-black or custom finish by special order. When temperatures near the ceiling reach 135F (57C), the soldered cover plate detaches, exposing the head of the Victaulic V38 concealed pendent fire sprinkler, which activates when temperatures reach 155F (68C).

The Victaulic Model V38 has a 5.6 K-Factor and installs with 1/2 in. (12.7 mm) National Pipe Thread (NPT), used in fire sprinkler systems throughout the United States. This Standard Response Fire Sprinkler features a die-cast brass frame, bronze deflector, cold-rolled steel cup, and a stainless-steel spring. Pendent sprinklers direct the water stream downward against the deflector to distribute water in a hemispherical spray pattern. The frame is cast with a hex-shap.

With a maximum working pressure of 175 PSI (12.1 BAR), this pendent sprinkler hangs from above-ceiling piping behind a decorative cover plate and may be installed and used in accordance with NFPA 13 and local fire code. Each Model V38 sprinkler is made by Victaulic, a global manufacturer with more than a half-century in the fire protection industry.

This product is UL-listed, and appropriate for use in fire protection systems when accepted by the authority having jurisdiction. In accordance with NFPA 13, a higher temperature rating may be required when installing a standard response fire sprinkler in or near heat sources, unventilated spaces, uncovered steam mains, or uninsulated rooftops.

Specifications

Size:
1/2 in.
Size Detail:
1/2 in. NPT Sprinkler
K-Factor:
5.6K
Response Type:
Standard Response
Temperature:
155F
Heat Element:
Glass Bulb
Coverage:
Standard
Corrosion Resistance:
No
May Contain Lead:
Yes
UL Listed:
Yes
FM Approved:
Yes
SIN Number:
V3801
Head Type:
Concealed Pendent
Model:
V38
Manufacturer:
Victaulic
