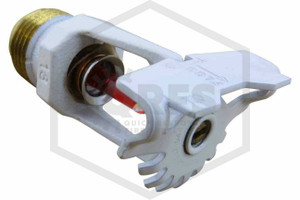

Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W

SKU:
VK104WH155
Manufacturer Part Number:
12995MB/W

No reviews yet Write a Review
$28.50

Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W

Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W

  • Buy 50 - 199 and get 3% off
  • Buy 200 or above and get 7% off

Frequently Bought Together:

Viking Micromatic Horizontal Sidewall Fire Sprinkler | VK104 | Standard Response | 5.6K | White | 155F | 12995MB/W
Inc. Tax
Ex. Tax
Overview

Viking VK104 Standard Response White Horizontal Sidewall Fire Sprinkler delivers powerful, affordable fire suppression in ordinary-temperature applications. Using a heat-activated 5mm glass bulb, this automatic fire sprinkler opens when ambient temperatures reach 155F (68C), drenching the area surrounding a fire to keep it in its place of origin.

The Viking Model VK104 has a 5.6 K-Factor and installs with 1/2 in. (12.7 mm) National Pipe Thread (NPT), used in fire sprinkler systems throughout the United States. This Standard Response Fire Sprinkler features a white finish, brass frame, brass screw, copper deflector, and a spring sealing assembly made with nickel alloy and PTFE tape.

With a maximum working pressure of 175 PSI (12.1 BAR), this horizontal sidewall sprinkler installs on a wall or the side of a beam where ceiling piping is not desirable and may be installed and used in accordance with NFPA 13 and local fire code. Each Model VK104 sprinkler is made by Viking, a global leader in fire protection manufacturing for nearly 100 years.

This product is UL listed & FM approved for use in fire protection systems when accepted by the authority having jurisdiction. In accordance with NFPA 13, a higher temperature rating may be required when installing a standard response fire sprinkler in or near heat sources, unventilated spaces, uncovered steam mains, or uninsulated rooftops.

Specifications
Finish:
White
Response Type:
Standard Response
Temperature:
155F
Corrosion Resistance:
No
May Contain Lead:
No
Nominal K-Factor:
5.6K
Fire Sprinkler Heat Element:
Glass Bulb
Fire Sprinkler Use Type:
Commercial
Fire Sprinkler Head Type:
Horizontal Sidewall
SIN:
VK104
Thread Type:
NPT
Model:
Micromatic
UL Listed/FM Approved:
No
