3/4 in. Slip x 1/2 in. FNPT CPVC Straight Terminal Adapter is a corrosion-resistant CPVC thermoplastic fitting for use with fire sprinkler pipe. This CPVC straight terminal adapter has a 3/4 in. slip inlet and a brass 1/2 in. FNPT connection, facilitating the installation of a fire sprinkler head.
This straight adapter is designed to slide over CPVC pipe and fix permanently using an approved adhesive. Each 3/4 in. Slip x 1/2 in. FNPT CPVC Straight Terminal Adapter is made in the USA by Thermafit Industries, Inc., a California-based manufacturer of plumbing and fire sprinkler pipe fittings. This straight terminal adapter has a working pressure rating of 175 PSI at 150F (65C) and is suitable for installation in NFPA 13, NFPA 13D, and NFPA 13R systems where allowed by state and local law.
3/4 in. Slip x 1/2 in. FNPT CPVC Straight Terminal Adapter is intended for use in light hazard NFPA 13 occupancies, residential NFPA 13R occupancies, and home fire sprinkler systems in accordance with NFPA 13D. This product is UL-listed for use in wet-pipe automatic fire sprinkler systems in combination with UL-listed CPVC products.
3/4 in. Slip x 1/2 in. FNPT CPVC Straight Terminal Adapter is backed by Thermafit's ten-year warranty from the date of shipment. Consult Thermafit's installation manual for minimum curing times, compatible adhesives, and friction loss allowances. Not suitable for out

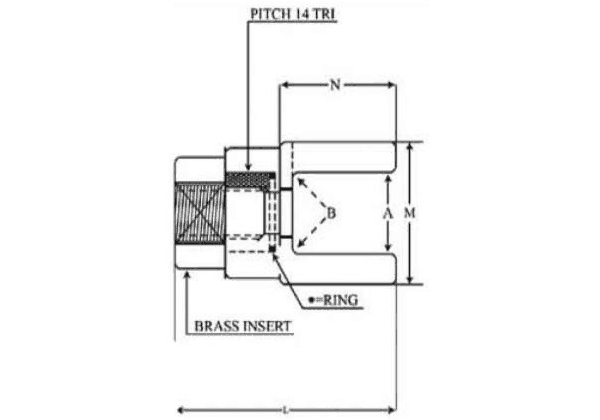

Dimensions
- A: 1.058 in.
- B: 1.046 in.
- L: 2.040 in.
- M: 1.046 in. +/- 0.004
- N: 1.000 in. +/- 0.004
- Wall Thickness: 0.396 in.
Material: |
CPVC |
Pipe Fitting Type: |
Coupling |
UL Listed/FM Approved: |
No |
