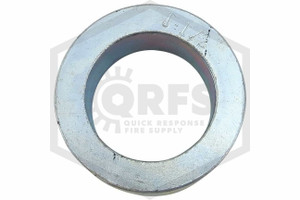

Pilot Clamp Guides for Quick and Accurate Pipe Hole Cutting
For a quick and accurate way to consistently cut perfect holes in fire sprinkler system, plumbing, or other pipe, look no further than this essential part of a bigger Pilot Clamp Kit. These Pilot Clamp guides are interchangeable hole saw guides, available in a variety of sizes to fit your pipe cutting needs.
These six steps can help users of pilot clamps drill with accuracy and ease:
Measure the size of the pipe.
Take that measurement and use the hole size chart to determine an appropriate hole saw size. Pilot clamps drill holes up to 2 inches in diameter and can guide hole saws through pipe up to 4 inches in diameter.
Attach the hole saw guide and bushing, then center and fasten the “vise-grip” like clamp head onto the pipe, squeezing together the handles until locked into place.
Adjust the clamp or pipe as needed to center the bubbles in the built-in levels.
Position the drill and the guide bushing.
Carefully begin drilling into the pipe until desired results are achieved.
What is a Pilot Clamp and what is it used for?
Pipefitters of all kinds rely on a variety of tools to modify pipe in the field. But with a range of pipe diameters and thicknesses available, one task often remains difficult with standard tools: precisely drilling holes in the pipe. Pipefitters utilize pilot clamps for day-to-day assignments that require consistent and accurate drilling on-site. Although anyone can use a pilot clamp with a simple household drill, qualified and trained pipefitters typically use them to make holes for mechanical tees, crosses, welded outlets, threaded outlets, and devices designed to detect changes in flow or pressure within piping systems. Pilot clamps simplify pipefitting in the field. They fasten to any type of pipe, including those used for fire sprinkler systems, sewage removal, and potable water. By using a clamp head with two jaw-like ends, the clamp acts as a hole saw guidance system that can guarantee accurate hole placement.
QRFS SKU: |
56-NT-PCG-G150 |
Manufacturer Part Number: |
X PC G150 |
Manufacturer: |
National Fire Products |
Product Type: |
Pilot Clamp |
Model: |
Guide |
Application: |
Pipe Hole Cutting |
Size: |
1-1/2 in. |
Finish: |
Grey |
UL Listed: |
No |
FM Approved: |
No |
Sourced Location: |
USA |
Length: |
2.25 in. (57.15 mm) |
Width: |
2.25 in. (57.15 mm) |
Height: |
1 in. (25.4 mm) |
Weight: |
0.64 lb. (0.29 kg) |
Box/Pack Quantity: |
1 |
