1-1/4 in. (31.75 mm) Test and Drain Valve NPT installs in risers, standpipes, and other plumbing for quick and easy system testing and draining. Featuring a heavy-duty bronze body, single-handle operation, and PTFE valve seat, the AGF Model 1000 TESTanDRAIN Inspector Test Valve is designed for compliance with NFPA 13, NFPA 13R, and NFPA 13D including closure rate requirements, manufacturer approval, and leakage control.
1-1/4 in. (31.75 mm) AGF 1000 Test and Drain Valve includes an 1/2 in. (12.7 mm) 5.6K orifice ideal for testing many 1/2 in. (1

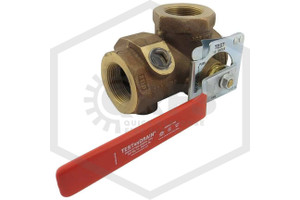

1 1/2 in. (38.1 mm) Test and Drain Valve NPT installs in risers, standpipes, and other plumbing for quick and easy system testing and draining. Featuring a heavy-duty bronze body, single-handle operation, and PTFE valve seat, the AGF Model 1000 TESTanDRAIN Inspector Test Valve is designed for compliance with NFPA 13, NFPA 13R, and NFPA 13D including closure rate requirements, manufacturer approval, and leakage control.
1 1/2 in. (38.1 mm) AGF 1000 Test and Drain Valve includes an 1/2 in. (12.7 mm) 5.6K orifice ideal for testing many 1/2 in.(12.7mm) fire sprinkler heads. Includes a tamper-resistant orifice and sight glasses and a plugged port for system access-all in one compact valve.
This 1 1/2 in. (38.1 mm) AGF Test and Drain Valve is rated at 300 PSI working pressure. Optional field repair kits and locking kits for the AGF Model 1000 TESTanDRAIN Inspector Test Valve keep your investment in working order. Tapered inlet and outlet National Pipe Threads (NPT), used in fire protection systems throughout the United States, make installing a 1 1/2 in. (38.1 mm) Test and Drain Valve simple.
Other sizes and orifice options for this 1 1/2 in. (38.1 mm) Test and Drain Valve are available by special order.
UL listed and FM approved.
.7mm) fire sprinkler heads. Includes a tamper-resistant orifice and sight glasses and a plugged port for system access-all in one compact valve.This 1-1/4 in. (31.75 mm) AGF Test and Drain Valve is rated at 300 PSI working pressure. Optional field repair kits and locking kits for the AGF Model 1000 TESTanDRAIN Inspector Test Valve keep your investment in working order. Tapered inlet and outlet National Pipe Threads (NPT), used in fire protection systems throughout the United States, make installing a 1-1/4 in. (31.75 mm) Test and Drain Valve simple.
Other orifice sizes and valve orientation options for this 1-1/4 in. (31.75 mm) Test and Drain Valve are available by special order.
UL listed and FM approved.
Thread Type: |
NPT |
