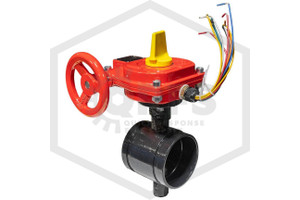

MECH™ Grooved Butterfly Valve with Tamper Switch
The MECH™ Butterfly Valve with tamper switch is a control valve designed for fire protection water service, where reliable shutoff and clear supervisory indication are required. In sprinkler and standpipe piping, a butterfly valve is commonly used to isolate sections for testing, maintenance, or emergency control, and a supervised valve helps reduce the risk of a valve being left partially closed without anyone knowing. This model includes an integrated tamper (supervisory) switch intended to connect to a fire alarm supervisory circuit, providing valve-position monitoring so that off-normal conditions can be signaled to the system when the valve is not in its normal operating position. The valve is constructed with a rugged ASTM A536, 65-45-12 Ductile Iron body for strength and long service life, and it features a high-visibility Red finish to support identification in mechanical rooms and riser assemblies.
The valve uses a Grooved connection type, supporting common grooved-coupling installation practices used throughout fire sprinkler piping. It is rated for a maximum working water pressure of 300 PSI and is intended to operate within a rated working temperature range of 32F to 176F (0C to 80C), aligning with typical above-freezing fire protection water supply conditions. The product data also emphasizes correct installation practice for grooved butterfly valves, including ensuring the disc is not positioned fully open during installation so it does not protrude beyond the valve body ends. This valve is UL Listed and FM Approved.
This valve family is offered in multiple configurations to match system sizing needs while keeping the same core attributes: ductile iron construction, grooved ends, a red exterior finish, supervisory monitoring via tamper switch, and a 300 PSI working-pressure rating for fire protection applications governed by AHJs and project specifications.
This valve is also available in the following sizes: 2 in. NPT Valve; 2-1/2 in. NPT Valve; 3 in. NPT Valve; 4 in. NPT Valve; 6 in. NPT Valve; 8 in. NPT Valve; 10 in. NPT Valve; 12 in. NPT Valve.
