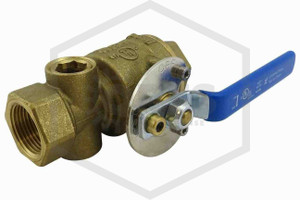

Lansdale Test and Drain | 3/4 in. NPT with 1/2 in. Orifice

SKU:
TD075-50
Manufacturer Part Number:
MODEL LV1

No reviews yet Write a Review
$150.25
Test & Drain Valve | 3/4 in. Threaded with 1/2" (5.6K) Orifice
Test & Drain Valve | 3/4 in. Threaded with 1/2" (5.6K) Orifice
Test & Drain Valve | 3/4 in. Threaded with 1/2" (5.6K) Orifice
Handle of 3/4 in. Threaded with 1/2" (5.6K) Orifice

  • Buy 4 - 31 and get 3% off
  • Buy 32 or above and get 5% off

Frequently Bought Together:

Test & Drain Valve | 3/4 in. Threaded with 1/2" (5.6K) Orifice
Inc. Tax
Ex. Tax

Overview

3/4 in. (19.05 mm) Test and Drain Valve NPT with 1/2 in. (12.7 mm) 5.6K orifice offers an all-in-one solution for quick and easy water flow testing and system drainage without water hammer. The vinyl-coated three-position steel handle provides at-a-glance control and monitoring of valve status, all on a compact, forged-brass body. This valve is straight.

Suitable for use in water-based systems including fire protection, the 3/4 in. (19.05 mm) Test and Drain Valve assembly features a PTFE seat and chrome-plated brass ball that form a water-tight seal when not in operation.

The 1/2 in. (12.7 mm) 5.6K orifice is ideal for simulating discharge rates of many 1/2 in. (12.7mm) fire sprinkler heads. Designed for compliance with NFPA 13, NFPA 13R, and NFPA 13D including closure rate, approvals, and leakage control.

3/4 in. (19.05 mm) Test and Drain Valve is rated at 300 PSI working pressure and has a female National Pipe Thread (NPT) inlet and outlet for easy installation.

UL listed and FM approved.

Specifications

Thread Type:
NPT
