6 in. Shotgun Riser Check Valves for Fire Protection Systems

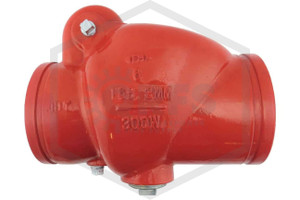

This 6 in. Grooved x Grooved durable ductile iron Riser Check Valve, sometimes called a Shotgun Riser, ensures that water flowing from fire department connections (FDCs), bypass connections, gravity pressure tanks, and pump discharge connections flows to your sprinklers, and not to the street.
With a rated working water pressure of 300 PSI, this shotgun riser features a non-slamming, spring-loaded clapper that prevents backflow when installed in wet-pip and/or dry-pipe fire sprinkler systems with grooved connecting pipe ends. This check valve can be installed vertically or horizontally, and when installed with a trim kit, can provide a compact alternative to alarm check valves when a water motor alarm is not required.
Fire Protection Shotgun Riser Check Valve Options & Additional Information
This Check Valve is UL Listed and FM Approved. It has a Maximum Working Temperature of 176F (80C). This shotgun riser is available in seven different Grooved x Grooved sizes:
2 in., 2-1/2 in., 3 in., 4 in., 5 in., 6 in., 8 in.
QRFS SKU: |
70-MC-SGR-260000 |
Manufacturer: |
MECH® |
Valve Type: |
Shotgun Riser Check Valve |
Number of Connections: |
2 Connections |
Connection Type: |
Grooved |
Material: |
Ductile Iron |
Clapper: |
Single |
Size: |
6 in. |
Size Detail: |
6 in. Grooved x 6 in. Grooved |
UL Listed: |
Yes |
FM Approved: |
Yes |
Rated Working Water Pressure: |
300 PSI |
Maximum Temperature Rating: |
176F (80C) |
Finish: |
Red |
Installation: |
Vertical or Horizontal |
Lead Free: |
No |
Length: |
12.76 in. (324.1 mm) |
Width: |
11 in. (279.4 mm) |
Height: |
7 in. (177.8 mm) |
Weight: |
36.39 lb. (16.5 kg) |
