Straight Pattern Gate Valve | 2-1/2 in.

2-1/2 in. (63.5 mm) Straight Pattern Gate Valve is UL-listed and FM-approved as a hose valve for use in standpipe systems, fire pumps, and hydrants supplying water for fire protection service. Rated for working pressures up to 300 PSI (2070 kPa), this fire-fighting gate valve is suitable for use as a test connection, protecting fire hydrants and standpipe systems from damage.

Each 2-1/2 in. (63.5 mm) Straight Pattern Gate Valve features a hex-shaped 2-1/2 in. (63.5 mm) inlet threaded with female National Pipe Thread (NPT) and a male 2-1/2 in. (63.5 mm) National Standard Thread (NST/NH) outlet. This valve features brass trim and a red handwheel, and is often used when space limitations preclude permanent installation.

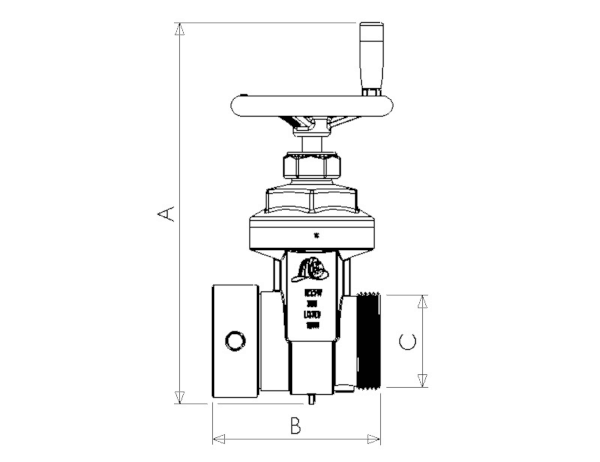

Dimensions*

• A: 12 in. (305 mm)
• B: 4.02 in. (102 mm)
• C: Subject to hose thread

*Speed handle not included.
