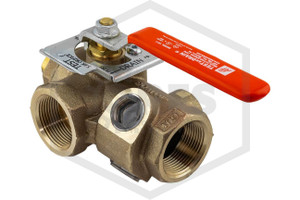

The AGF TESTanDRAIN® Model 1011 system test and express drain valve is designed for quick, simple testing and draining in wet fire sprinkler systems. It combines the functions of an inspector’s test and a high-volume drain into a compact, single-handle valve assembly. The Model 1011 features a tamper-resistant test orifice and a tamper-resistant sight glass for direct visual confirmation of water flow during testing and draining.
The valve is suitable for horizontal or vertical installation and is rated for up to 400 PSI working water pressure. It is available with NPT inlet/outlet connections (BSPP also available) in multiple sizes, and is offered with selectable test orifice sizes to match the required system K-factor. The Model 1011 is UL Listed / ULC and FM Approved, and is field serviceable (repair kits available separately).
Model 1011 Kit Options (with pressure relief):
-
A-Kit: Includes a Model 7000L pressure relief valve with factory 175 PSI setting (other settings available: 200, 225, or 300 PSI), plus drain trim.
-
T-Kit: Includes the Model 7000L pressure relief valve, plus a 3-way universal gauge valve, 4" pressure gauge, and drain trim.
