Three Way Valves 1/4 in. for Fire Protection Systems

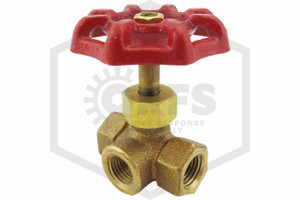

This 1/4 in. NPT durable Bronze Three Way Valve streamlines air and water pressure monitoring for water-based fire protection systems. Rotating the Cast Iron Handwheel closes and/or opens the valve, allowing for speedy installation and use of pressure gauges for pressure testing and monitoring in dry-pipe and wet-pipe fire sprinkler systems. This valve is suitable as a trim valve for inspection and monitoring of static or residual pressure, where quick identification of unusual levels of pressure aids in preventing costly or dangerous false alarms or failed sprinkler activation. It features three 1/4 in. NPT (National Pipe Thread) connections, with a Cast Iron Handwheel and a Water Oil Gas pressure of 300 WOG.
Fire Protection Three Way Valve Options & Additional Information
This Three Way Valve is available in a Brass finish with three 1/4 in. FNPT connections.
This product is not specifically listed by cULus, FM, or any other listing(s) organization – we recommend consulting with your local fire marshal or other authority having jurisdiction before installing.
QRFS SKU: |
73-LN-3WAY-040000 |
Manufacturer: |
Lansdale |
Valve Type: |
Three Way Valve |
Number of Connections: |
3 Connections |
Connection Type: |
National Pipe Thread (NPT) |
Body Material: |
Bronze |
Other Material: |
Cast Iron Handwheel, Brass Stem |
Size: |
1/4 in. |
Size Detail: |
1/4 in. NPT x 1/4 in. NPT x 1/4 in. NPT |
UL Listed: |
No |
FM Approved: |
No |
Water Oil Gas Pressure (WOG): |
300 WOG |
Finish: |
Brass |
Length: |
2.13 in. (54.1 mm) |
Width: |
2.13 in. (54.1 mm) |
Height: |
1.97 in. (50.04 mm) |
Weight: |
0.41 lb. (0.19 kg) |
Available Box/Pack Quantity: |
12, 144 |
