3 in. FNPT x 2-1/2 in. NST Snoot and Swivel Cast Brass

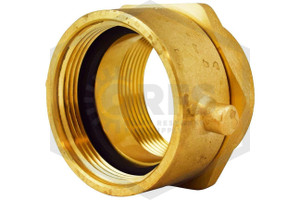

This 3 in. FNPT x 2-1/2 in. NST Cast Brass Snoot & Swivel secures to an FDC’s inlet to allow fire hose to pump water into an inlet body. These Cast Brass finished 3 in. FNPT x 2-1/2 in. NST Brass material Snoot and Swivels are designed as replacement parts in which the rigid end fits FDC inlets with 3 in. MNPT connections.
Snoot and Swivel Options & Additional Information
This Snoot and Swivel is available in a variety of different finishes, sizes, and thread types. The following sizes are available in Polished Brass, Cast Brass, and Polished Chrome:
2-1/2 in. FNPT x 2-1/2 in. NST
3 in. FNPT x 2-1/2 in. NST
3 in. FNPT x 3 in. NYFD
Other hose thread types are available upon request: Some of these include NPSH, NSST, NST, NYFD, QST, BCT, CSA, Chicago, Cleveland, Richmond, and more. 3 in. x 3 in. Snoot and Swivels are only available in NST and NYFD connections.
QRFS SKU: |
33-WL-SASNST-BR-222100 |
Manufacturer: |
Wilson & Cousins |
Model: |
Snoot and Swivel |
Thread Type: |
FNPT x NST |
Material: |
Brass |
Size: |
3 in. x 2-1/2 in. |
Size Detail: |
3 in. FNPT x 2-1/2 in. NST |
Outer Diameter: |
3-9/25 in. |
Inner Diameter: |
2-1/2 in. |
Finish: |
Brass |
Finish Detail: |
Cast Brass |
Thread Options: |
Available Upon Request |
Length: |
3.36 in. (85.34 mm) |
Width: |
4.37 in. (110 mm) |
Height: |
2.74 in. (69.60 mm) |
Weight: |
3.25 lb. (1.47 kg) |
Box/Pack Quantity: |
12 |
