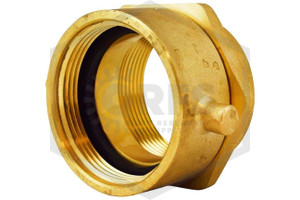

3 in. FNPT x NST Snoot and Swivel Cast Brass
This 3 in. FNPT x NST Cast Brass Snoot & Swivel secures to an FDC’s inlet to allow fire hose to pump water into an inlet body. These Cast Brass finished 3 in. FNPT x NST Brass material Snoot and Swivels are designed as replacement parts in which the rigid end fits FDC inlets with 3 in. MNPT connections.
Snoot and Swivel Options & Additional Information
This Snoot and Swivel is available in a variety of different finishes, sizes, and thread types. The following sizes are available in Polished Brass, Cast Brass, and Polished Chrome:
2-1/2 in. FNPT x 2-1/2 in. NST
3 in. FNPT x 2-1/2 in. NST
3 in. FNPT x 3 in. NYFD
Other hose thread types are available upon request: Some of these include NPSH, NSST, NST, NYFD, QST, BCT, CSA, Chicago, Cleveland, Richmond, and more. 3 in. x 3 in. Snoot and Swivels are only available in NST and NYFD connections.
QRFS SKU: |
33-WL-SASNYFD-BR-222200 |
Manufacturer: |
Wilson & Cousins |
Model: |
Snoot and Swivel |
Thread Type: |
FNPT x NYFD |
Material: |
Brass |
Size: |
3 in. |
Size Detail: |
3 in. FNPT x 3 in. NYFD |
Outer Diameter: |
4-2/3 in. |
Inner Diameter: |
3 in. |
Finish: |
Brass |
Finish Detail: |
Cast Brass |
Thread Options: |
NST Available Upon Request |
Length: |
4.66 in. (118.36 mm) |
Width: |
4.66 in. (118.36 mm) |
Height: |
2.65 in. (67.31 mm) |
Weight: |
3.42 lb. (1.55 kg) |
Box/Pack Quantity: |
12 |
