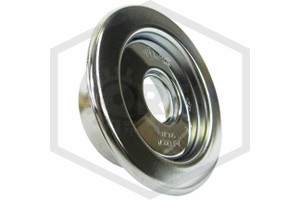

Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F

SKU:
12-VK-E1ST-CP75
Manufacturer Part Number:
20369F

1 review Write a Review
$3.50

Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F

Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F
Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F
Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F
Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F
Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F

  • Buy 200 - 399 and get 2.5% off
  • Buy 400 or above and get 7.5% off

Frequently Bought Together:

Viking® E-1 Escutcheon | Polished Chrome | 3/4 in. Sprinkler | 20369F
Inc. Tax
Ex. Tax
Overview

Viking E-1 Fire Sprinkler Escutcheon

This Viking E-1 Recessed Sprinkler Escutcheon features an aesthetically pleasing chrome finish on steel, has an outer diameter of 3-1/16 in. and a 5/8 in. adjustment. This two-piece non-split escutcheon is available for Viking fire sprinklers with a 1/2 in., 3/4 in., and 3/8 in. orifice and has a vertical adjustment up to 5/8 in. These Viking E-1 escutcheons are Push On design, meaning you simply push into the sprinkler’s adapter to install.

The Viking E-1 Recessed Fire Sprinkler Escutcheon guarantees proper sprinkler head activation by covering the gap left by a hole saw when a fire sprinkler is installed. Keep your system compliant by using the listed fire sprinkler escutcheon for your sprinkler.

Viking E-1 Recessed Escutcheon Compatibility, Listings, and Other Information

Sprinkler Identification Numbers compatible with this Viking E-1 Escutcheon include:

VK003, VK004, VK008, VK015, VK023, VK102, VK104, VK110, VK112, VK116, VK132, VK134, VK158, VK159, VK162, VK164, VK169, VK170, VK180, VK181, VK182, VK186, VK188, VK202, VK206, VK212, VK254, VK279, VK290, VK292, VK302, VK303, VK304, VK305, VK307, VK308, VK317, VK318, VK319, VK320, VK329, VK330, VK331, VK332, VK333, VK334, VK342, VK343, VK344, VK346, VK352, VK353, VK360, VK377, VK430, VK432, VK435, VK436, VK438, VK440, VK442, VK446, VK448, VK450, VK452, VK453, VK458, VK460, VK466, VK468, VK4680, VK470, VK4700, VK472, VK479, VK484, VK4840, VK486, VK4860, VK534, VK536, VK537, VK572, VK600, VK601, VK602, VK603, VK604, VK605, VK606, VK607, VK608, VK609, VK610, VK611, VK612, VK613, VK617, VK630, VK631, VK910

When combined with a listed sprinkler head, this recessed escutcheon may carry listings from UL, FM and/or other organizations, depending on the sprinkler it is installed with. Refer to the specific sprinkler’s technical datasheet for specific approvals. Whether you’re installing a new fire sprinkler system or just need replacement fire sprinkler escutcheons, be sure that it works with your model sprinkler!

Viking E-1 escutcheons made of Steel are available with finishes including Bright Brass, Polished Chrome, White Polyester, and Black Polyester, and Stainless Steel material available with finishes including Polished Chrome, White Polyester, and Electroless Nickel PTFE. These escutcheons are to be installed with manufacturer defined fire sprinkler heads with a 3/8 in., 1/2 in., or 3/4 in. orifice. See list above to check for sprinkler head compatibility.

Viking recessed and adjustable escutcheons provide a low-profile decorative recessed sprinkler installation. These two-piece escutcheons allow installation and testing of the sprinklers prior to installing the ceiling or wall, and are made to allow for minor adjustments due to pipe or ceiling pitch. These escutcheons can be removed and reinstalled, allowing access above removable ceiling panels for servicing building equipment without shutting down the sprinkler system and removing the sprinkler.

Specifications
QRFS SKU:
12-VK-E1ST-CP75
Manufacturer Part Number:
20369F
Manufacturer:
Viking
Model:
E-1
Label Number:
11437
Installation Type:
Push On
Adjustment:
5/8 in.
Outer Diameter:
3-1/16 in.
Inner Diameter:
2-1/8 in.
Sprinkler Size:
3/4 in. Sprinkler
Finish:
Chrome
Finish Detail:
Polished Chrome
Corrosion Resistant:
No
UL Listed:
Yes
FM Approved:
Yes
Length:
3.06 in. (77.72 mm)
Width:
3.06 in. (77.72 mm)
Height:
1.06 in. (26.92 mm)
Weight:
0.23 lb. (0.1 kg)
Box/Pack Quantity:
200
Reviews
1 review |
1 review
  • 5

    worked great

    Posted by Tom Rankin on Dec 1st 2022

    could not find the correct trim piece to fit my sprinkler heads. These worked perfectly.
