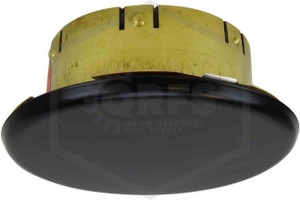

Viking Mirage Cover Plate | Painted Black | 2-3/4 in. | 165F | 23190MC/B (Label: 23192A)

SKU:
VKMGSMBL165
Manufacturer Part Number:
23190MC/B

No reviews yet Write a Review
$24.99
Viking Mirage Cover Plate | Black | 165F | 23190MC/B (Formerly 13504MA/B)
Viking Mirage Cover Plate | Black | 165F - Side View with Label
Viking Mirage Cover Plate | Black | 165F - Top View with Label
Viking Mirage Cover Plate | Black | 165F - Bottom View
Viking Mirage Black Fire Sprinkler Cover Plate - Dimensions Height
Viking Mirage Black Fire Sprinkler Cover Plate - Dimensions Height and Width
Viking Mirage Black Fire Sprinkler Cover Plate - Dimensions Width

  • Buy 100 - 399 and get 5% off
  • Buy 400 or above and get 15% off

Frequently Bought Together:

Viking Mirage Cover Plate | Black | 165F | 23190MC/B (Formerly 13504MA/B)
Inc. Tax
Ex. Tax

Overview

Black 165F (57C) Cover Plate Assembly for Viking Mirage Fire Sprinklers activates at 165F (57C) to facilitate timely activation of fire sprinkler heads with temperatures rated at 205F (96C) and above. Outer diameter: 2-3/4 in.

Label Number: 23192C (Formerly 13502C)

Sprinkler Identification Numbers (SIN) for this black 165F (57C) Cover Plate Assembly for Viking Mirage Fire Sprinklers include:

  • VK457
  • VK461
  • VK4611
  • VK462
  • VK4621
  • VK463
  • VK464
  • VK465
  • VK4651
  • VK632
  • VK634
  • VK474
  • VK4740
  • VK488
  • VK4880
  • VK492
  • VK4921
  • VK494
  • VK4940

This Black 165F (57C) Cover Plate Assembly for Viking Mirage Fire Sprinklers is listed by UL, FM, and/or other organizations depending on the sprinkler. When this black fire sprinkler cover plate reaches a specified temperature the solder holding the plate's decorative exterior on the frame melts, and the two separate. Cover plates in stock finishes other than lack are available on our site, and custom-finished may be available by special order - call us at 888-361-6662 or fill out our contact form.

For many cover plates, the rated temperature is at least 20F (6.7C) cooler than the sprinkler head's activation temperature, which ensures that the cover plate detaches early enough to allow the sprinkler to activate on time. However, each manufacturer's product line varies slightly and cover plate temperatures may be closer to or further away from the fire sprinkler's activation temperature. Use only the cover plate approved by the manufacturer for your specific sprinkler.

Fire Sprinkler Helpful Tips:

Tip 1: When replacing cover plates it is important to purchase replacements from the same manufacturer as the fire sprinkler. Each manufacturer's plate is a little different in size, color, and so on. The manufacturer and temperature of a cover plate is printed on the base of the plate. To view this information, remove the cover plate. Most cover plates are either twist off or pull off.

Tip 2: Any modifications or replacements to a fire sprinkler system should be performed by qualified professionals.

Tip 3: National Fire Protection Association (NFPA) guidelines state that spare fire sprinkler heads and a wrench should be accessible at all times in a facility with a commercial fire sprinkler system installed. Often, state regulations also apply. Check with your local fire department.

Tip 4: All fire sprinkler systems should be visually inspected (often) and professionally inspected (annually).

Specifications

Manufacturer:
Viking
Model:
Mirage
Manufacturer Part Number:
23190MC/B
Replaces Manufacturer Part Number(s):
13504MC/B (Old Label Number: 13502A)
Label Number:
23192A
QRFS Part Number:
VKMGSMBL165
Finish:
Black
Finish Detail:
Painted Black
Outer Diameter:
2-3/4 in.
Inner Diameter:
1-15/16 in.
Depth:
1-1/16 in.
Installation Type:
Thread On
Temperature:
165F (74C)
Adjustment:
1/2 in.
Corrosion Resistant:
No
UL Listed:
Yes
FM Approved:
Yes
Height:
1.02 in. (25.9 mm)
Width:
2.75 in. (69.9 mm)
Weight:
0.05 lb. (0.02 kg)
