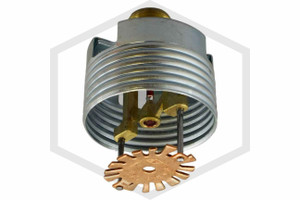

Viking XT1 Concealed Pendent Fire Sprinkler | VK4621 | Standard/Quick Response | 5.6K | 175F | 22961AD (Formerly 13503AD)

SKU:
VK4621CP175

No reviews yet Write a Review
$16.99
Viking XT1 Concealed Pendent Fire Sprinkler | VK4621 | Standard/Quick Response | 5.6K | 175F | 22961AD (Formerly 13503AD)
Viking XT1 Concealed Pendent Fire Sprinkler | VK4621 | Threads
Viking XT1 Concealed Pendent Fire Sprinkler | VK4621 Protective Cap Removal Process (Tool Sold Separately)
VK4621 Wrench Pre-Insertion (Wrench Sold Separately)
VK4621 Wrench Inserted (Wrench Sold Separately)
  • Viking Mirage Cover Plate | White | 135F | 23190MA/W (Formerly 13504MA/W)
  • Viking Mirage Large Diameter White Fire Sprinkler Cover Plate
  • Viking Mirage Cover Plate | Polished Chrome | 135F | 23190FA (Formerly 13504FA)
  • Viking Mirage Cover Plate | Brushed Chrome | 135F | 23190FA/B (Formerly 13504FA/B)
  • Viking Mirage Cover Plate | Brushed Copper | 135F | 23190EA/B (Formerly 13504EA/B)
  • Viking Mirage Cover Plate | Black | 135F | 23190MA/B (Formerly 13504MA/B)
  • Viking Mirage Cover Plate | Brushed Brass | 135F | 23190BA/B (Formerly 13504BA/B)
  • Viking Mirage Cover Plate | Standard Size | Bright Brass | 135F | 13504BA
  • Viking Mirage Cover Plate | Antique Brass | 135F | 23190BA/A (Formerly 13504MA/W)
  • Viking Mirage Large Diameter Brushed Chrome Fire Sprinkler Cover Plate
  • Viking Mirage Large Diameter Polished Chrome Fire Sprinkler Cover Plate
  • Viking Mirage Large Diameter Black Fire Sprinkler Cover Plate

Frequently Bought Together:

Viking XT1 Concealed Pendent Fire Sprinkler | VK4621 | Standard/Quick Response | 5.6K | 175F | 22961AD (Formerly 13503AD)
Inc. Tax
Ex. Tax

Overview

Viking XT1 Standard/Quick Response Concealed Pendent Fire Sprinkler activates at 175F (79C) to defend up to ordinary hazard group II commercial occupancies against fire. This UL and FM approved fire sprinkler features a 5.6K orifice and a 1/2 in. (12.7 mm) NPT connection. The model replaces Viking VK462 model number 13503AD.


The Viking XT1 VK4621 is the direct replacement to the now-obsolete Viking VK462.

Viking XT1 VK4621 Standard/Quick Response Concealed Pendent Fire Sprinkler delivers decorative, competitively priced defense against fire in up to ordinary hazard, group II applications (cULus). Using a heat-activated 3mm glass bulb, this automatic fire sprinkler opens when ambient temperatures reach 175F (79C), reducing the likelihood of flashover and facilitating safe evacuation. It is UL-listed for quick response applications with a maximum pressure of 250 PSI and FM approved for standard response applications with a maximum pressure of 175 PSI.

The Viking XT1 Mirage has a 5.6 K-Factor and installs with 1/2 in. (12.7 mm) National Pipe Thread (NPT), used in fire sprinkler systems throughout the United States. This Fire Sprinkler features a brass body, copper deflector, and nickel-alloy sealing assembly coated with PTFE tape. The sprinkler's threaded adapter cup is designed to be installed with a low-profile cover plate that provides up to a 1/2 in. of adjustment.

This pendent sprinkler hangs from above-ceiling piping and may be installed and used in accordance with NFPA 13 and local fire code. Each Model XT1 sprinkler is made by Viking, a global leader in fire protection manufacturing for nearly 100 years.

This product is UL listed and FM approved, and appropriate for use in fire protection systems when accepted by the authority having jurisdiction. In accordance with NFPA 13, a higher temperature rating may be required when installing a fire sprinkler in or near heat sources, unventilated spaces, uncovered steam mains, or uninsulated rooftops. Concealed pendent sprinklers should not be installed where the air pressure above the ceiling is greater than the pressure below, which may prevent or delay sprinkler activation in the event of a fire.

Technical Documents

Click here to view the datasheet for the Viking Mirage Quick Response Concealed Pendent Fire Sprinkler.

Specifications

Size:
1/2 in.
Size Detail:
1/2 in. NPT Sprinkler
K-Factor:
5.6K
Response Type:
Standard/Quick Response
Temperature:
175F
Heat Element:
Glass Bulb
Coverage:
Standard
Corrosion Resistance:
No
May Contain Lead:
Yes
UL Listed:
Yes
FM Approved:
Yes
SIN Number:
VK4621
Head Type:
Concealed Pendent
Model:
XT1
Manufacturer:
Viking
