Butterfly Valve with Tamper Switch | 3 in. | Wafer | 300 PSI

SKU:
71-MC-BFWWTS-220000

No reviews yet Write a Review
$166.50

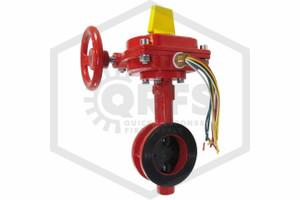

Butterfly Valve with Tamper Switch | 3 in. | Wafer | 300 PSI | QRFS | Hero Image

Butterfly Valve with Tamper Switch | 3 in. | Wafer | 300 PSI | QRFS | Hero Image
Butterfly Valve with Tamper Switch | 3 in. | Wafer | 300 PSI | QRFS | Side Image
Butterfly Valve with Tamper Switch | 3 in. | Wafer | 300 PSI | QRFS | Label Image
Butterfly Valve with Tamper Switch | 3 in. | Wafer | 300 PSI | QRFS | Other Label Image

  • Buy 4 - 15 and get 3% off
  • Buy 16 or above and get 10% off

Frequently Bought Together:

Butterfly Valve with Tamper Switch | 3 in. | Wafer | 300 PSI | QRFS | Hero Image
Inc. Tax
Ex. Tax
Overview

3 in. Wafer Butterfly Valves for Fire Protection Systems

This 2 in. Wafer durable ductile iron Butterfly Valve with Tamper Switch offers precision flow control of gas, fluids, and semi-solids, specifically in fire protection/fire sprinkler systems and standpipes. With a rated working water pressure of 300 PSI (Grooved, Wafer) or 175 PSI (NPT Threaded) and maximum rated working temperature of 212F (100C) (Grooved) or 176F (80C) (NPT Threaded and Wafer), this valve is suitable for indoor or outdoor use in water-based systems, including as a control valve in fire protection systems.

The handwheel assembly delivers a slow open and slow close, forming a leak-tight seal between the Iron disc and rubber O-ring. A fitted tamper switch allows this Wafer Butterfly Valve to activate a local alarm bell or horn when the valve comes to a partial or complete close. The bright-yellow position indicator offers an at-a-glance indication of the valve's position. When closed, the down-flow end of the pipe can be replaced without draining the entire system.

Working at 125/250 VAC, this valve features dual supervisory switches and wiring, making it easy to connect to a fire control panel.

Fire Protection Butterfly Valve with Tamper Switch Options & Additional Information

This Butterfly Valve is UL Listed and FM Approved. It is available in 3 different connection types, each with their own sizing options:

Grooved – 2 in., 2-1/2 in., 3 in., 4 in., 6 in., 8 in.

Threaded (NPT) – 1 in., 1-1/4 in., 1-1/2 in., 2 in.

Wafer – 3 in., 4 in., 6 in., 8 in.

Specifications
QRFS SKU:
71-MC-BFWWTS-220000
Manufacturer:
MECH
Valve Type:
Butterfly Valve
Number of Connections:
2 Connections
Connection Type:
Wafer
Body Material:
Ductile Iron
Other Material:
Rubber O-Ring, Rubber Disc
Size:
3 in.
Size Detail:
3 in. Wafer
UL Listed:
Yes
FM Approved:
Yes
Rated Working Water Pressure:
300 PSI
Max Working Temperature:
176F (80C)
Electrical Connection(s):
Yes
Tamper Switch:
Yes
Voltage:
125/250 VAC
Finish:
Red
Length:
5 in. (127 mm)
Width:
7.95 in. (201.93 mm)
Height:
12.30 in. (312.42 mm)
Weight:
20 lb. (9.07 kg)
Box/Pack Quantity:
1
