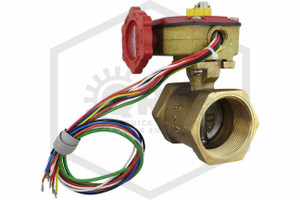

2 in. NPT Powerball Valves for Fire Protection Systems
This 2 in. NPT durable Bronze Powerball Valve with Tamper Switch is UL Listed and FM Approved to control water flow for use in water-based systems, including fire protection, installed indoors or outdoors. With a rated working water pressure of 300 PSI, and a cold working pressure of 300 CWP, this valve features an internal tamper switch (115 VAC) that connects to a fire alarm control panel, designed to activate a local alarm bell when the valve comes to partial or complete close. This valve has two Threaded (NPT) connections.
This gate valve has a brass finish over a bronze body, with a stainless-steel disc and steel handwheel. Slow opening and slow closing, this Threaded Powerball Valve operates with a quarter-turn of the handwheel and eliminates water hammer. Features a yellow OPEN/SHUT position indicator.
Fire Protection Powerball Valves with Tamper Switch Options & Additional Information
This Powerball Valve is UL Listed and FM Approved. It is available in Grooved or Threaded (NPT) connections, each with their own set of sizing:
Grooved: 1 in., 1-1/4 in., 1-1/2 in., 2 in., 2-1/2 in.
Threaded (NPT): 1-1/4 in., 1-1/2 in., 2 in., 2-1/2 in.
QRFS SKU: |
71-LN-PBTT-200000 |
Manufacturer: |
Lansdale |
Valve Type: |
Powerball Valve with Tamper Switch |
Number of Connections: |
2 Connections |
Connection Type: |
Threaded |
Body Material: |
Bronze |
Other Material: |
Stainless Steel Disc, Steel Handwheel |
Size: |
2 in. |
Size Detail: |
2 in. NPT x 2 in. NPT |
UL Listed: |
Yes |
FM Approved: |
Yes |
Rated Working Water Pressure: |
300 PSI |
Rated Cold Water Pressure: |
300 CWP |
Electrical Connection(s): |
Yes |
Tamper Switch: |
Yes |
Voltage: |
115 VAC |
Finish: |
Brass |
Length: |
3.25 in. (82.55 mm) |
Width: |
2.76 in. (70.10 mm) |
Height: |
6.13 in. (155.70 mm) |
Weight: |
5 lb. (2.27 kg) |
Available Box/Pack Quantity: |
1 |
