Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI

SKU:
71-LN-PBGG-180000

No reviews yet Write a Review
$240.50

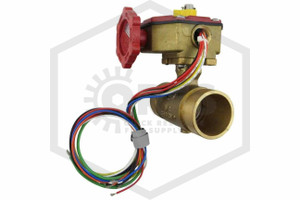

Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI | QRFS | Hero Image

Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI | QRFS | Hero Image
Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI | QRFS | Hero Image
Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI | QRFS | Markings Image 1
Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI | QRFS | Markings Image 2
Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI | QRFS | Markings Image 3

  • Buy 6 - 23 and get 3% off
  • Buy 24 or above and get 10% off

Frequently Bought Together:

Powerball Valve with Tamper Switch | 1-1/2 in. | Grooved | 300 PSI | QRFS | Hero Image
Inc. Tax
Ex. Tax
Overview

1-1/2 in. Grooved Powerball Valves for Fire Protection Systems

This 1-1/4 in. Grooved durable Bronze Powerball Valve with Tamper Switch is UL Listed and FM Approved to control water flow for use in water-based systems, including fire protection, installed indoors or outdoors. With a rated working water pressure of 300 PSI, and a cold working pressure of 300 CWP, this valve features an internal tamper switch (115 VAC) that connects to a fire alarm control panel, designed to activate a local alarm bell when the valve comes to partial or complete close. This valve has two Grooved connections.

This gate valve has a brass finish over a bronze body, with a stainless-steel disc and steel handwheel. Slow opening and slow closing, this Grooved Powerball Valve operates with a quarter-turn of the handwheel and eliminates water hammer. Features a yellow OPEN/SHUT position indicator.

Fire Protection Powerball Valves with Tamper Switch Options & Additional Information

This Powerball Valve is UL Listed and FM Approved. It is available in Grooved or Threaded (NPT) connections, each with their own set of sizing:

Grooved: 1 in., 1-1/4 in., 1-1/2 in., 2 in., 2-1/2 in.

Threaded (NPT): 1-1/4 in., 1-1/2 in., 2 in., 2-1/2 in.

Specifications
QRFS SKU:
71-LN-PBGG-180000
Manufacturer:
Lansdale
Valve Type:
Powerball Valve with Tamper Switch
Number of Connections:
2 Connections
Connection Type:
Grooved
Body Material:
Bronze
Other Material:
Stainless Steel Disc, Steel Handwheel
Size:
1-1/2 in.
Size Detail:
1-1/2 in. Grooved x 1-1/2 in. Grooved
UL Listed:
Yes
FM Approved:
Yes
Rated Working Water Pressure:
300 PSI
Rated Cold Water Pressure:
300 CWP
Electrical Connection(s):
Yes
Tamper Switch:
Yes
Voltage:
115 VAC
Finish:
Brass
Length:
2.87 in. (72.90 mm)
Width:
2.19 in. (55.63 mm)
Height:
5.59 in. (141.99 mm)
Weight:
4.80 lb. (2.18 kg)
Available Box/Pack Quantity:
1
