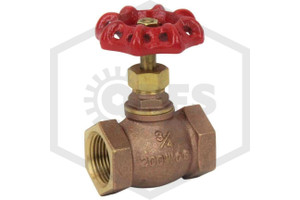

Globe Valves 3/4 in. for Fire Protection Systems
This 3/4 in. NPT durable cast brass Globe Valve is ready for service in water-based systems, specifically fire protection/fire sprinkler systems and standpipes. With a rated Water Oil Gas Pressure of 200 WOG, this valve will throttle water and air flows using a Cast Iron Handwheel in many trim and/or drain applications, including with alarm valves and dry-pipe valve trim. It features two 3/4 in. NPT (National Pipe Thread) connections to ANSI B1.20.1.
Fire Protection Globe Valve Options & Additional Information
This Globe Valve is available in a Brass finish in seven different sizes:
1/4 in., 1/2 in., 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 2 in.
This product is not specifically listed by cULus, FM, or any other listing(s) organization – we recommend consulting with your local fire marshal or other authority having jurisdiction before installing.
QRFS SKU: |
73-LN-GLBE-120000 |
Manufacturer: |
Lansdale |
Valve Type: |
Globe Valve |
Number of Connections: |
2 Connections |
Connection Type: |
National Pipe Thread (NPT) |
Body Material: |
Cast Brass |
Other Material: |
Cast Iron Handwheel, Brass Disc Holder |
Size: |
3/4 in. |
Size Detail: |
3/4 in. NPT x 3/4 in. NPT |
UL Listed: |
No |
FM Approved: |
No |
Water Oil Gas Pressure (WOG): |
200 WOG |
Finish: |
Brass |
Width: |
2.17 in. (55.12 mm) |
Height: |
2.93 in. (74.42 mm) |
Weight: |
0.69 lb. (0.31 kg) |
Box/Pack Quantity: |
8 |
Carton Quantity: |
80 |
