Flow Test Kit 802 | 1 Pitot Tube | 2 Gauges | 1 Test Cap

SKU:
802TK
Manufacturer Part Number:
802

No reviews yet Write a Review
$430.75
Flow Test Kit 802 | 1 Pitot Tube | 2 Gauges | 1 Test Cap
Flow Test Kit 802 | 2-1/2 in. Liquid Filled Gauge
Flow Test Kit 802 | 2-1/2 in. Liquid Filled Gauge with pitot tube and blades
Flow Test Kit 802 | Test Cap

Frequently Bought Together:

Flow Test Kit 802 | 1 Pitot Tube | 2 Gauges | 1 Test Cap
Inc. Tax
Ex. Tax

Overview

Fire Flow Test Kit

  • Combines the most common flow testing tools into a single kit including a pitot gauge, test cap, pressure gauges, and a spare metal pitot blade
  • Ideal for fire hydrants and other water-flowing equipment
  • Ships standard with a bleeder valve designed to protect pressure gauges against damage

Why choose this pitot gauge kit for flow testing?

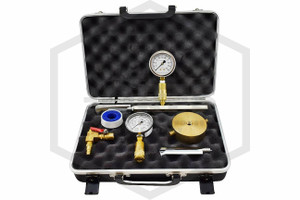

This water flow test kit contains the tools you need for flow tests of fire hydrants and other water-flowing equipment. Every kit contains:

  • Two 2-1/2 in. Liquid Filled gauges with 1% full-scale accuracy with quick disconnect fittings
  • One test cap machined from solid brass (2-1/2 in. NST x 1/4 in. NPT)
  • One quick-disconnect double-ball-valve-bleeder
  • One hex pitot gauge handle
  • Two standard pitot blades
  • A medium carrying case from Plano (16-1/2 in. x 13 in. x 6-3/4 in. outer case dimensions) — a world-famous manufacturer of hard-shell cases for the outdoors
  • A 43-1/3 in. ft. roll of PTFE thread seal tape

Which dial ranges should I choose?

The analogue gauges in this flow test kit is available in multiple dial ranges. To prolong your gauge’s life, choose a range that places your expected pressures at the center of the dial or in the mid-range. For example, for testing outlets with 30 PSI choose a 0-60 PSI gauge range or for testing outlets with 50 PSI choose a 100 PSI gauge range.

Dial Ranges Major #'d Graduations Minor Graduations Smallest Graduations
-30-0-300 PSI 50 10 5
-30-0-200 PSI 20 10 2
-30-0-100 PSI 20 10 2
0-30 PSI 5 1 5
0-60 PSI 10 5 1
0-100 PSI 10 10 1
0-160 PSI 20 10 2
0-200 PSI 20 10 2
0-300 PSI 50 10 5

What do I do with these readings?

Pitot gauges provide pressure readings in pounds per square inch (PSI). These readings can be used to estimate how fast water flows, in gallons per minute (GPM). Conversion accuracy depends on an accurate measurement of outlet size and the nozzle or outlet coefficient. For more on how and why to convert PSI to GPM in pitot tests, read the blow linked below.

Specifications

Manufacturer:
NEMFG
