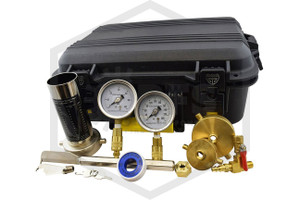

12 Piece Inspector’s Flow Test Kit
This Inspector’s Flow Test Kit is designed and specifically curated for Inspectors to use daily – it provides easy, convenient, and accurate water flow testing in water based and fire protection systems such as fire hydrants, hose, and other water-flowing equipment. This 11-piece kit includes:
- Two 1/4 in. NPT 3.2 in. Dry Pressure Gauges (Gauge Range Options available -30-400 PSI) NIST Certificate Available
- Three Brass Test Caps: One 3/4 in. Faucet Test Cap, One 1-1/2 in. Hose Test Cap One 2-1/2 in. Hydrant Test Cap
- One Quick-Disconnect Double-Ball Bleeder Valve
- One Hex Pitot Gauge Handle
- Two Pitot Blades: One Ultra-Thin, One Ultra-Thin Notched
- One Hydrant Flow Nozzle to straighten stream of water
- One 43-1/3 in. Roll of PTFE thread-seal tape
- One Plano Large All-Weather Carrying Case – Plano is a world-famous manufacturer of hard-shell rugged outdoor cases.
Which dial ranges should I choose?
The gauges in this flow test kit is available in multiple dial ranges. To prolong your gauge’s life, choose a range that places your expected pressures at the center of the dial or in the mid-range. For example, for testing outlets with 30 PSI choose a 0-60 PSI gauge range or for testing outlets with 50 PSI choose a 100 PSI gauge range.
Dial Ranges |
Major Graduations |
Minor Graduations |
Smallest Graduations |
-30-0-300 PSI |
50 |
10 |
5 |
-30-0-200 PSI |
20 |
10 |
2 |
-30-0-30 PSI |
10 |
5 |
1 |
0-60 PSI |
10 |
5 |
1 |
0-100 PSI |
10 |
- |
1 |
0-160 PSI |
20 |
10 |
2 |
0-200 PSI |
20 |
10 |
2 |
0-300 PSI |
30 |
10 |
5 |
0-400 PSI |
50 |
25 |
5 |
QRFS SKU: |
40-NW-806 |
Manufacturer Part Number: |
#806 |
Manufacturer: |
New England Manufacturing |
Application: |
Flow Test Kit 806 |
Model: |
Inspector's |
Gauges: |
2 x 1/4 in. NPT 3.2 Dry" |
Gauge Range Options: |
Yes |
Gauge Range(s): |
-30-400 PSI |
NIST Certificate Available: |
Yes |
Brass Test Cap(s): |
One of Each: 3/4, 1-1/2, 2-1/2 in. |
Bleeder Valve: |
One Quick Disconnect Double-Ball |
Pitot Gauge Handle: |
One Hex Handle |
Pitot Blades: |
One Ultra-Thin, One Ultra-Thin Notched |
Hydrant Flow Nozzle: |
One Hydrant Flow Nozzle |
Elbow: |
No |
Case Dimensions: |
19 in. x 14-1/2 in. x 8 in. |
PTFE Tape: |
Yes |
Spare Gaskets: |
No |
Total Pieces: |
12 |
Length: |
19 in. (482.6 mm) |
Width: |
14.5 in. (368.3 mm) |
Height: |
8 in. (203.2 mm) |
Weight: |
17 lb. (7.71 kg) |
Box/Pack Quantity: |
1 |
